Spring-SpringMVC-Mybatis 整合

基本概念

Spring

Spring 是一个轻量级的控制反转（IoC）和面向切面（AOP）的容器框架。

SpringMVC

Spring MVC 属于 Spring Framework 的 MVC 组件。Spring MVC 分离了控制器、模型对象、视图等角色。

MyBatis

MyBatis 是一个基于 Java 的持久层框架，包含 SQL Maps 和 Data Access Objects（DAO）两部分。MyBatis 大幅减少了手写 JDBC 代码、参数设置和结果集处理的工作量。MyBatis 使用简单的 XML 或注解用于配置和原始映射，将接口和 Java 的 POJOs（Plain Old Java Objects，普通的 Java 对象）映射成数据库中的记录。

SSM 整合

配置文件

1. dbconfig.properties：数据源配置信息
2. spring-mybatis.xml：Spring 整合 Mybatis 配置文件
3. spring-mvc.xml：SpringMVC 配置

工程目录

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>me.ilcb.web</groupId>
    <artifactId>ssm-demo</artifactId>
    <packaging>war</packaging>
    <version>1.0-SNAPSHOT</version>
    <name>ssm-demo</name>
    <url>http://maven.apache.org</url>

    <properties>
        <spring.version>4.3.9.RELEASE</spring.version>
        <mybatis.version>3.4.4</mybatis.version>
        <mybatis.spring.version>1.3.1</mybatis.spring.version>
        <mysql.version>5.1.42</mysql.version>
        <commons.dbcp.version>1.2.2</commons.dbcp.version>

        <log4j.version>1.2.17</log4j.version>
    </properties>
    <dependencies>

        <!--Spring 相关jar包-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- Mybatis 相关jar包-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>${mybatis.spring.version}</version>

        </dependency>

        <!-- Mysql 相关jar包-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
        </dependency>

        <!-- dbcp数据源jar包-->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>${commons.dbcp.version}</version>
        </dependency>

        <!-- log4j配置 -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>${log4j.version}</version>
        </dependency>

        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <build>
        <finalName>ssm-demo</finalName>
        <plugins>
            <!-- Mybatis Generator插件，可自动生成mybatis相关配置-->
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.5</version>
                <configuration>
                    <configurationFile>src/main/resources/generatorConfig.xml</configurationFile>
                    <overwrite>true</overwrite>
                </configuration>
                <dependencies>
                    <dependency>
                        <groupId>org.mybatis.generator</groupId>
                        <artifactId>mybatis-generator-core</artifactId>
                        <version>1.3.2</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>

        <!-- 编译时将xml等配置文件一起拷贝到class目录下-->
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
            </resource>

            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
            </resource>
        </resources>
    </build>
</project>

Spring 整合 Mybatis

数据源配置

新建 dbconfig.properties，内容如下：

driverClass=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306/ssm
username=root
password=root

initialSize=10
maxActive=10
maxIdle=10
maxWait=50000

整合 spring 和 mybatis

新建 spring-mybatis.xml，用来完成自动扫描，自动注入，配置数据源。

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/context
                           http://www.springframework.org/schema/context/spring-context.xsd">

    <!-- 自动扫描 -->
    <context:component-scan base-package="me.ilcb.service"/>

    <!-- 配置文件 -->
    <bean id="propertyPlaceholderConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
        <property name="locations">
            <list>
                <value>classpath:dbconfig.properties</value>
            </list>
        </property>
    </bean>

    <!-- 数据源配置 -->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource">
        <property name="driverClassName" value="${driverClass}"/>
        <property name="url" value="${url}"/>
        <property name="username" value="${username}"/>
        <property name="password" value="${password}"/>

        <!-- 初始化连接大小 -->
        <property name="initialSize" value="${initialSize}"/>
        <!-- 连接池最大数量 -->
        <property name="maxActive" value="${maxActive}"/>
        <!-- 连接池最大空闲 -->
        <property name="maxIdle" value="${maxIdle}"/>
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="${maxWait}"/>
    </bean>

    <!-- spring和MyBatis整合，不需要mybatis的配置映射文件 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>

        <!-- 自动扫描mapping.xml文件-->
        <property name="mapperLocations" value="classpath:me/ilcb/mapper/*.xml"/>
    </bean>

    <!--DAO接口所在包，spring自动查找其下的dao-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="me.ilcb.dao"/>

        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    </bean>

    <!-- 事务管理-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>
</beans>

log4j.properties

#定义LOG输出级别
log4j.rootLogger=INFO,Console,File
#定义日志输出目的地为控制台
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.Target=System.out
#可以灵活地指定日志输出格式，下面一行是指定具体的格式
log4j.appender.Console.layout = org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%c] - %m%n

#文件大小到达指定尺寸的时候产生一个新的文件
log4j.appender.File = org.apache.log4j.RollingFileAppender
#指定输出目录
log4j.appender.File.File = logs/ssm.log
#定义文件最大大小
log4j.appender.File.MaxFileSize = 10MB
# 输出所有日志，如果换成DEBUG表示输出DEBUG以上级别日志
log4j.appender.File.Threshold = ALL
log4j.appender.File.layout = org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern =[%p] [%d{yyyy-MM-dd HH\:mm\:ss}][%c]%m%n

测试

新建表 user

CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(12) DEFAULT NULL,
  `age` int(3) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

用 Mybatis Generator 生成 mybatis 配置相关文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC
        "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
    <!-- 数据库驱动位置 -->
    <classPathEntry location="E:\repository\mysql\mysql-connector-java\5.1.42\mysql-connector-java-5.1.42.jar"/>

    <context id="context" targetRuntime="MyBatis3">
        <commentGenerator>
            <property name="suppressAllComments" value="false"/>
            <property name="suppressDate" value="true"/>
        </commentGenerator>

        <!-- 数据库连接 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://localhost:3306/ssm" userId="root" password="root"/>

        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 生成的model配置 -->
        <javaModelGenerator targetPackage="me.ilcb.domain" targetProject="MAVEN">
            <property name="enableSubPackages" value="false"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>

        <!-- 生成的mapper.xml配置 -->
        <sqlMapGenerator targetPackage="me.ilcb.mapper" targetProject="MAVEN">
            <property name="enableSubPackages" value="false"/>
        </sqlMapGenerator>

        <!-- 生成的dao配置 -->
        <javaClientGenerator targetPackage="me.ilcb.dao" targetProject="MAVEN" type="XMLMAPPER">
            <property name="enableSubPackages" value="false"/>
        </javaClientGenerator>

        <!-- 指定那些表要生成配置，%表示所有表 -->
        <table tableName="%" enableCountByExample="false" enableDeleteByExample="false" enableSelectByExample="false"
               enableUpdateByExample="false"/>
    </context>
</generatorConfiguration>

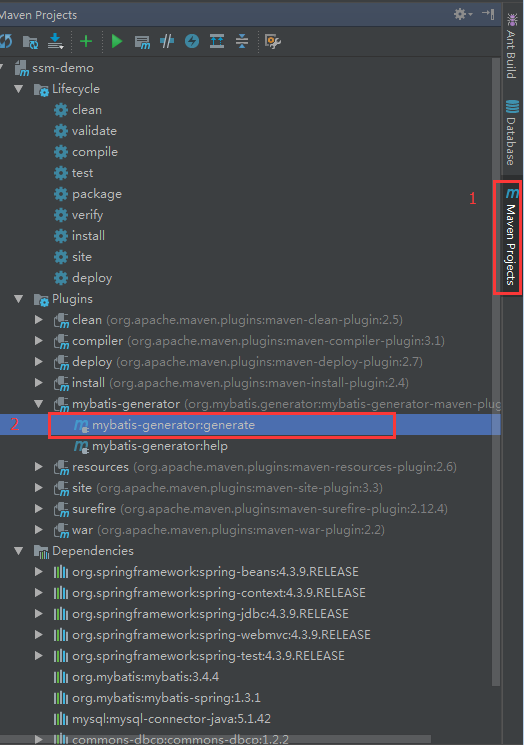

如果是 IntelliJ IDEA，在右侧工具栏中找到 maven，在 maven 中依次打开 Plugins->mybatis-generator，点击 mybatis-generator:generate 进行代码及配置生成：

生成完成后在 target->generated-sources->mybatis-generator 目录下将生成的文件拷贝到项目对应包下： 1.User.java

package me.ilcb.domain;

public class User {
    private Integer id;
    private String name;
    private Integer age;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name == null ? null : name.trim();
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "User{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}

2.UserMapper.java

package me.ilcb.dao;

import me.ilcb.domain.User;

public interface UserMapper {
    int deleteById(Integer id);

    int insert(User user);

    int insertUser(User user);

    User selectById(Integer id);

    int updateUserById(User user);

    int updateById(User user);
}

3.UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="me.ilcb.dao.UserMapper">
    <resultMap id="BaseResultMap" type="me.ilcb.domain.User">
        <id column="id" property="id" jdbcType="INTEGER"/>
        <result column="name" property="name" jdbcType="VARCHAR"/>
        <result column="age" property="age" jdbcType="INTEGER"/>
    </resultMap>

    <sql id="Base_Column_List">
        id, name, age
    </sql>

    <select id="selectById" resultMap="BaseResultMap" parameterType="java.lang.Integer">
        select
        <include refid="Base_Column_List"/>
        from user
        where id = #{id,jdbcType=INTEGER}
    </select>

    <delete id="deleteById" parameterType="java.lang.Integer">
        delete from user
        where id = #{id,jdbcType=INTEGER}
    </delete>

    <insert id="insert" parameterType="me.ilcb.domain.User">
        insert into user (id, name, age)
        values (#{id,jdbcType=INTEGER}, #{name,jdbcType=VARCHAR}, #{age,jdbcType=INTEGER})
    </insert>

    <insert id="insertUser" parameterType="me.ilcb.domain.User">
        insert into user
        <trim prefix="(" suffix=")" suffixOverrides=",">
            <if test="id != null">
                id,
            </if>
            <if test="name != null">
                name,
            </if>
            <if test="age != null">
                age,
            </if>
        </trim>
        <trim prefix="values (" suffix=")" suffixOverrides=",">
            <if test="id != null">
                #{id,jdbcType=INTEGER},
            </if>
            <if test="name != null">
                #{name,jdbcType=VARCHAR},
            </if>
            <if test="age != null">
                #{age,jdbcType=INTEGER},
            </if>
        </trim>
    </insert>

    <update id="updateUserById" parameterType="me.ilcb.domain.User">
        update user
        <set>
            <if test="name != null">
                name = #{name,jdbcType=VARCHAR},
            </if>
            <if test="age != null">
                age = #{age,jdbcType=INTEGER},
            </if>
        </set>
        where id = #{id,jdbcType=INTEGER}
    </update>

    <update id="updateById" parameterType="me.ilcb.domain.User">
        update user
        set name = #{name,jdbcType=VARCHAR},
             age = #{age,jdbcType=INTEGER}
        where id = #{id,jdbcType=INTEGER}
    </update>
</mapper>

新建 UserService 接口及实现类

1.IUserService.java

package me.ilcb.service;

import me.ilcb.domain.User;

public interface IUserService {
    int deleteById(Integer id);

    int insert(User user);

    int insertUser(User user);

    User selectById(Integer id);

    int updateUserById(User user);

    int updateById(User user);
}

2.UserService

package me.ilcb.service.impl;

import me.ilcb.dao.UserMapper;
import me.ilcb.domain.User;
import me.ilcb.service.IUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service(value = "userService")
public class UserService implements IUserService {
    @Autowired
    private UserMapper userMapper;

    public int deleteById(Integer id) {
        int result = userMapper.deleteById(id);
        return result;
    }

    public int insert(User user) {
        int result = userMapper.insert(user);
        return result;
    }

    public int insertUser(User user) {
        int result = userMapper.insertUser(user);
        return result;
    }

    public User selectById(Integer id) {
        User user = userMapper.selectById(id);
        return user;
    }

    public int updateUserById(User user) {
        int result = userMapper.updateUserById(user);
        return result;
    }

    public int updateById(User user) {
        int result = userMapper.updateById(user);
        return result;
    }
}

新建测试类，测试整合是否成功

1.UserTest.java

import me.ilcb.domain.User;
import me.ilcb.service.impl.UserService;
import org.junit.Assert;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = {"classpath:spring-mybatis.xml"})
public class UserTest {
    @Autowired
    private UserService userService;

    @Test
    public void test() {
        User user = new User();
        user.setName("aaa");
        user.setAge(20);

        int result = userService.insert(user);
        Assert.assertEquals(result, 1);

        user = userService.selectById(1);
        Assert.assertEquals(user.getName(), "aaa");

        System.out.println(user);
    }
}

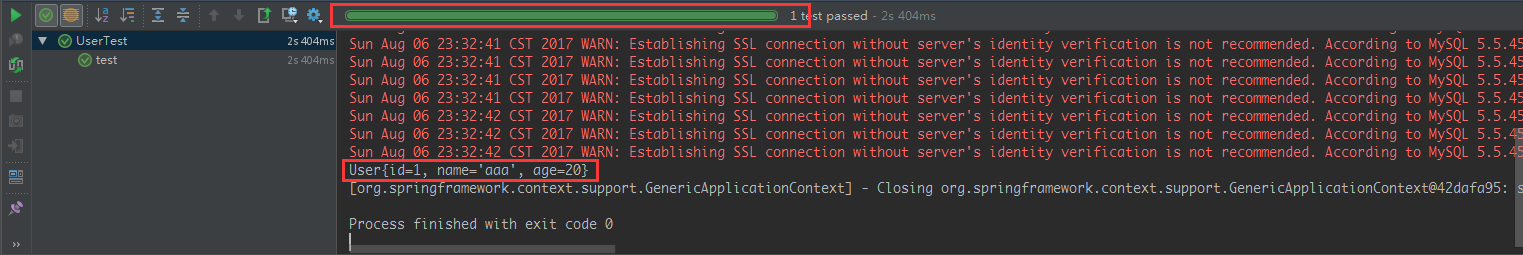

2.运行测试用例，整合成功： 至此 Spring 和 Mybatis 整合成功

整合 SpringMVC

配置 spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/context
                           http://www.springframework.org/schema/context/spring-context.xsd
                           http://www.springframework.org/schema/mvc
                           http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- 自动扫描controller -->
    <context:component-scan base-package="me.ilcb.controller" />

    <!--自动注册DefaultAnnotationHandlerMapping,AnnotationMethodHandlerAdapter,这2个bean是spring MVC为@Controllers分发请求所必须;同时提供数据绑定@NumberFormatannotation支持，@DateTimeFormat支持，@Valid支持，读写XML的支持（JAXB），读写JSON的支持（Jackson）。处理响应ajax请求时，就使用到了对json的支持，在action写JUnit单元测试时，要从spring IOC容器中取DefaultAnnotationHandlerMapping与AnnotationMethodHandlerAdapter来完成测试，<mvc:annotation-driven/>就注册这两个bean。
当需要controller返回一个map的json对象时，可以为<mvc:annotation-driven/>设定<mvc:message-converters>来设定字符集和json处理类，例如：
    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.StringHttpMessageConverter">
                <property name="supportedMediaTypes">
                    <list>
                        <value>text/html;charset=UTF-8</value>
                    </list>
                </property>
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>-->
    <mvc:annotation-driven/>

    <!-- 定义视图解析器-->
    <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
</beans>

配置 web.xml

<!DOCTYPE web-app PUBLIC "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
        "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">
    <display-name>Archetype Created Web Application</display-name>

    <!-- Spring监听器 -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:spring-mybatis.xml</param-value>
    </context-param>

    <servlet>
        <servlet-name>springMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springMVC</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
</web-app>

在 WEB-INF/jsp/目录下新建 userList.jsp

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>Title</title>
</head>
<body>
    姓名:${user.name}
    年龄:${user.age}
</body>
</html>

新建 UserController.java

package me.ilcb.controller;

import me.ilcb.domain.User;
import me.ilcb.service.impl.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
@RequestMapping("/")
public class UserController {
    @Autowired
    private UserService userService;

    @RequestMapping(value = "user/{id}")
    public String showUsers(@PathVariable Integer id, Model model) {
        User user = userService.selectById(id);
        if (user != null) {
            model.addAttribute(user);
        }
        return "userList";
    }
}

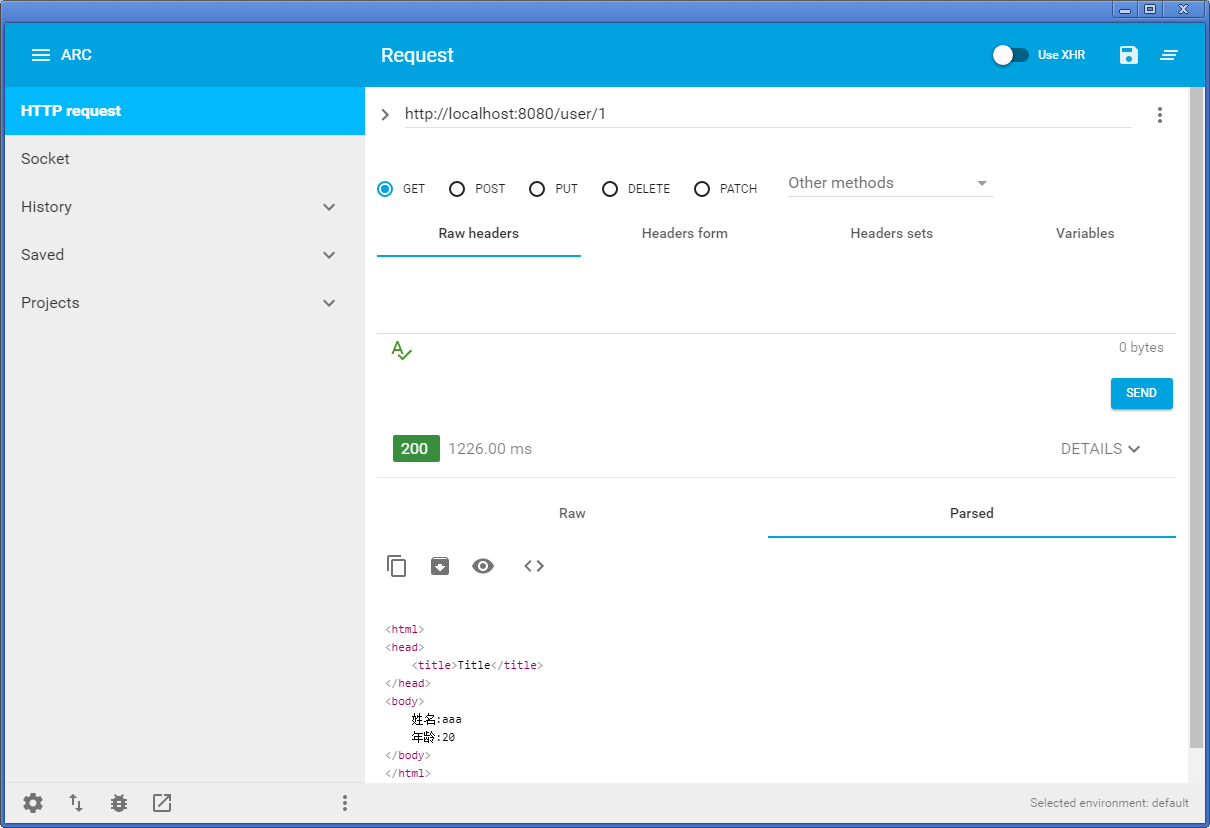

部署并访问项目

至此，Spring、SpringMVC、Mybatis 整合全部完成
